Understanding the formation of the Yamal Peninsula Gas-Emission Crater.

Methane is a powerful greenhouse gas, and the recent abrupt events of degassing and crater formation on the Yamal and Gydan Peninsulas have caused major concern that a warming Arctic may lead to increased thawing of permafrost and gas emissions. In addition, exploration and development of oil and gas fields in northern West Siberia, with construction of production, transportation and support facilities upon permafrost, face problems due to the harsh Arctic climate, low negative temperatures of air and ground and complex periglacial processes like frost heaving, thermokarst, thermal erosion. Processes in shallow permafrostmaylead to the formation of gas-emission craters, a phenomenon discovered during exploration for the past decade in the Arctic West Siberia. The first methane-leaking crater (Yamal Crater) was found in the Yamal Peninsula 42 km from the Bovanenkovo gas field and that discovery was followed by several more from the Yamal and Gydan Peninsulas. The Yamal Crater has been better documented than the others, which are only imaged in few photographs, but the available data are insucient to concede about the conditions and causes of its origin. The crater origin has been unanimously attributed to an explosive gas emission event, but the origin of the gas remains a subject of discussions.

In a paper published in the journal Geosciences on 8 May 2020, Evgeny Chuvilin of the Center for Hydrocarbon Recovery at the Skolkovo Institute of Science and Technology, Julia Stanilovskaya of Total, Aleksey Titovsky of the Department of Science and Innovation of the Yamal-Nenets Autonomous District, Anton Sinitsky of the Arctic Research Center of the Yamal-Nenets Autonomous District, Natalia Sokolova, Boris Bukhanov, Mikhail Spasennykh, Alexey Cheremisin, Sergey Grebenkin, and Dinara Davletshina, also of the Center for Hydrocarbon Recovery at the Skolkovo Institute of Science and Technology, and Christian Badetz, also of Total, present a summary of the proposed hypotheses for the formation of the Yamal Crater.


Location map of the Erkuta Crater and oil and gas fields in the Yamal Peninsula. Chuvilin et al. (2020).

The proposed hypotheses explaining the formation of the Yamal Crater, and other craters in the Yamal and Gydan Peninsulas, can be divided into two main groups that invoke either deep-seated or shallow causes. The deep-seated causes of crater formation include increased deep heat flux, upward migration of deep gaseous fluids through fault zones and fault intersections to shallow permafrost and dissociation of intrapermafrost gas hydrates driven by ascending heat and gas flows. These processes can produce reservoirs of pressurized gas in shallow permafrost which can release explosively, break up the frozen cap and form a crater.


Helicopter view of the Erkuta crater and adjacent territory in summer 2017. Chuvilin et al. (2020).

The crater was discovered in June 2017 by people from the Erkuta Polar Station on the floodplain of the Erkuta River, 30 km east of the station. The area is of interest to biologists for its proximity to the nesting-place of falcons. Two years before, the terrain was absolutely flat, as witnessed by Alexander Sokolov in a TV broadcast (Vesti Yamal) of 30 June 2017.

The team of biologists led by Sokolov observed heaving of the previously flat surface, as well as cracks in soil, during field works in July 2016, a year before the crater was first discovered in June 2017. The newly formed crater had a cylindrical shape, 10 to 12 m in diameter, with smooth walls was 20 m deep. The original heave mound was not fully eliminated: the crater was encircled by a 2–3 m high parapet-like ridge, with its slopes covered with silt and clay silt ejected during the explosive gas emission.

In December 2017, a field trip to the Erkuta Crater was organised jointly by the Government of the Yamal–Nenets Autonomous District, Total SA and the Skolkovo Institute of Science and Technology. The field work included sampling of soil, ice and water from the crater rim. By that time, the southern wall of the crater had collapsed and the diameter increased to 17.5 m. The crater was partly filled with water which made an up to 8-m-deep lake covered by about 1-m-thick ice under approximately 0.8 m of snow. A part of the parapet-like ridge remained around the crater next to a lake.


(Top) Panoramic view of the Erkuta cCrater in December 2017. (Bottom left) Lake next to the remnant parapet-like ridge around the Erkuta Crater in December 2017. (Bottom right) Panoramic view of the Erkuta Crater in summer 2018. Julia Stanilovskaya, Evgeny Chuvilin, and Alexander Sokolov in Chuvilin et al. (2020).

In June 2018, the crater was imaged by a drone survey, which showed further degradation of its wall. The deep crater of a year before became almost fully filled with water and transformed into a lake semi-circled by a remnant 2–3 m parapet. The crater wall was deformed by thermal erosion and slumping in its outer part but remained vertical in the inner part.

Field studies in December 2017 revealed a layer of massive ground ice, 3–4 m of visible thickness, in the inner wall of the crater.


Sampling points (red circles) in the inner wall of the Erkuta crater, December 2017. (left) Fragment of the sampling sight, (right). Red dashed line in left panal delineates the ice line. Evgeny Chuvilin in Chuvilin et al. (2020).

Ice at the sampling site was generally transparent and pure, but locally enclosed 1-2 cm thick layers of fine grained soil and a minor amount of intricately shaped 1-3 mm gas bubbles. The clear massive ice was topped by a dirty gray ice layer of a few centimtres thick with abundant soil inclusions.


Massive ground ice in the crater wall, December 2017. (left) The surface of the ice, (right) fresh cut of ground ice with soil inclusions. Evgeny Chuvilin in Chuvilin et al. (2020).

The ground ice was overlain by frozen silt with organic inclusions (plant remnants). The sediments had cross and wavy stratification common to aluvial facies. Some organic layers on lenses were a few centimeters thick and a few cm to tens of centimetres long.

The sandy crater wall was locally cut by discontinuous branching fractures partly filled with ice, often within zones of iron impregnation. The fractures possibly formed under stress produced by fluid (water or gas) pressure from underlying sediments.


Interbedded sandy and silty soils with inclusions of organic matter in the crater wall (December 2017). (left) Discontinuous branching fractures, (right) wavy stratification of organic material. Evgeny Chuvilin in Chuvilin et al. (2020).

The ejected clay silt on the outer crater wall was originally wet and was deposited in a floodplain environment; it di ered markedly from the overlying organic-rich alluvial sand.

Shrubs on the remnant slope facing the lake do not di er much from the surrounding lowland vegetation. Therefore, heaving shortly preceded the gas emission event and caused substantial changes to the vegetation. Otherwise, at years-long heaving, vegetation would have adapted to new conditions. Shrubs on Arctic tundra are usually lower on topographic highs than on the plainland and are absent in many areas where only grass can grow.

The samples collected in the December 2017 field trip to the crater included frozen soil from the northern wall, fine-grained material ejected from the crater and ice.

The particle size distribution of soil samples and soil inclusions in ground ice was analyzed in the laboratory of Fundamentproekt. The particles sizes were determined by the pipette method in silt and clay and by sieve analysis in sand.

The particle sizes of soil over the ground ice mainly correspond to silty sand while the ejected material is mainly light clay silt and silt, with particle sizes similar to those of soil inclusions in visible ground ice.

The mineralogy of soil samples was analyzed at the Geological Faculty of the Lomonosov Moscow State University on a Rigaku ULTIMA-IV X-ray di ractometer. The samples consist mainly of quartz and feldspar minerals (microcline and albite), about 80%–90% in total. Quartz percentages reach 61.8% and 74.3% in silty sand samples 8 and 9, respectively, notably more than in clay silt sample 2 (about 45.2%). The feldspar minerals are 32.3% in sample 2, 23.9% in sample 8 and about 15.4% in sample 9. Clay minerals are mainly mixed-layer illite–smectite, from 5.8% in sample 9% to 10.2% in sample 2. Other minerals occur in minor amounts (1% or less). Samples 2 and 8 share similarity in mineralogy, with similar amounts of microcline, illite, smectite and kaolinite, and thus were originally involved in similar deposition processes.

The soil and ice samples were analysed for the contents of soluble salts by using soil–water extracts prepared from 100 g of dry substance. Soil-free massive ground ice was analysed in the molten state. The total percentage of salts did not exceed 0.1% in soil samples and was in a range of 40–173 mg per litre in ice samples. The predominant major ions were alkaline metals sodium, potasium and magnesium as cations and sulphate and chlorine as anoins.

The contents of unfrozen pore water in samples of erupted material (sample 2) and sand from the crater wall (sample 9) were determined from pore water activity. The amount of liquid water in the sand samples decreased abruptly at temperatures below -1°C and was less than 1% at -4°C. The clay silt sample (2) contained more unfrozen water than the sand sample (9): about 4% at -4°C and around 3% at -10°C.

Chuvilin et al. compared major-ion chemistry and stable isotopes of water in ice samples from the crater wall and in crater lake water. The ice samples (11 and 13) were recovered from the middle part of the ice lens free from visible soil inclusions. Prior to analyses, ice samples were melted, and the obtained water was collected without filtering.

The salinity of lake water is higher than that of ground ice: contents of some major ions are 7 to 11 times higher, especially sulphate, magnesium and calcium.

The oxygen and hydrogen isotope compositions of water from the lake and ice are also diff erent: those of ground ice are more depleted than in surface water from the crater. These compositions indicate that the mean annual temperature was 7 to 10°C lower than now when the ice was forming.

The structure and texture of soil and ice samples were analyzed at Skoltech. The microstructure of frozen soil was studied in replica samples (imprints of fresh fracture planes on a plexiglass film) under an optical microscope (at the Skolkovo Institute of Science and Technology) and a scanning electron microscope (at Moscow University). The techniques for preparing replica samples and their optical and electron microscopy were reported in a number of publications. Ice structure and texture were studied in thin sections between crossed Polaroids; the thin sections were prepared following the standard procedures.

Soil microstructure was studied in sand from the crater wall (sample 9) and in ejected clay silt (sample 2). According to reflected light optical microscopy, the sand sample (9) mostly consists of 0.1–0.25 mm subrounded isometric quartz particles, with lesser amounts of fine-grained material, lenses and layers of more or less strongly degraded organic remnants, distinct 1–2 mm brown organic inclusions, as well as black organic–mineral concretions of silty sand and decayed organics.

Scanning electron microscope images highlight the morphology of quartz grains, with signatures of brittle fracture and dissolution and with organic inclusions of di erent sizes, shapes and decay degrees. Finer silt or clay particles make continuous or discontinuous films and clusters on the surface of sand particles.


Scanning electron microscope images of sand sample 9 at di erent magnification factors, with signatures of fracture and dissolution (left) and organic inclusions (right). Chuvilin et al. (2020).

The microstructure of clay silt ejected from the crater (sample 2) was also examined under the optical and electron microscopes. Reflected light optical microscopy revealed quite uniform silt and clay particles with rare sand grains and fuzzy dark brown organic inclusions. Scanning electron microscope images of di erent magnifications resolve fine sand and coarse silt particles (and their replica imprints) cemented by clay silt at a magnification of x 500 and 5 μm to 20 μm particles at x 2000. The x 2000 images reveal orientations of mineral matrix particles delineated by sericite flakes, as well as organic inclusions easily spotted due to their particular shapes.


Scanning electron microscope images of clay silt sample 2 at diff erent magnification factors: general view (left) and detail image (right). Chuvilin et al. (2020).

The ice macrostructure was studied in samples 6, 8 and 11 of ground ice and sample 22 from the top of the ice lens, at the ice-soil contact. Samples 6 and 11 are generally similar: massive transparent ice with chains of rare 0.3-0.5 cm air bubbles and thin flaky layers of silt and clay particles. Clusters of mineral particles occur at ice crystal boundaries. Mineral inclusions more numerous than air bubbles. Ice crystals in samples 6 and 11 appear as exceeding 5–7 cm in size, but the actual size is difficult to estimate because only crystal fragments fit into the thin sections.


Ice sample 6: general view (left) and structure under polarised light (right). Chuvilin et al. (2020).

Unlike samples 6 and 11, ice sample 8 encloses a layer of silty sand in pure ice almost free from soil particles and air bubbles. The ice crystals are fine (few mm) along the soil layer and coarser (2–3 cm) away from it. Although the true size of the ice crystals remains unknown because of the limited thin section size, they may be commensurate with those in samples 6 and 11. The soil layer, in its turn, encloses numerous small 3–5-mm-long, and up to 2-mm-thick lenses of ice with fine crystals (fractions of mm).


Ice sample 8: general view (left) and structure under polarised light (right). Chuvilin et al. (2020).

Ice sample 22 from the top of the ice lens differs markedly in colour from the other ice samples. It encloses numerous scattered small soil particles and air bubbles which make it look like dirty opaque ice. The ice crystals are 2-4 mm and generally isometric. The sand-silt material occurs both along the boundaries of ice crystals and inside them. The ice crystals in this sample are finer than in the three other samples possibly because they nucleated and grew in the presence of mineral components in the medium which provide numerous centres of crystallisation but is unfavorable for the formation of large ice crystals.


Ice sample 22: general view (left) and structure under polarized light (right). Chuvilin et al. (2020).

The gas component was analysed in sample 9 of sandy permafrost samples 6, 21, 22, and 23 of ground ice. Intrapermafrost gas from sample 9 was extracted by 150 ml syringes from thawing, roughly 50 g specimens in a concentrated salt solution following a standard technique, using pure nitrogen or helium as carrier gas.

Methane was present in all samples: mostly a few cm³ per 1 kg of soil or ice. Its content reached 94 cm³/kg at the top of ground ice (sample 22) but was about 10 times less in sample 21 from the middle of the ground ice lens. All samples except for 21 contained much more carbon dioxide than methane, which may be evidence of cryogenic concentration in frozen sand, e.g. during freezing of a talik. The contents of ethane and propane (methane homologs) varied from fractions to 2–3 cm³/kg. The ratios of methane to its homologs in ice samples were generally from 2 to 40 and indicated the presence of both biogenic methane and a component associated with sediment maturation (deep gas). The carbon isotope composition of methane in ground ice, analysed at the Hydroisotope Laboratory (Germany) likewise suggests biogenic origin of the gas.

The obtained results have implications for the formation mechanism of the Erkuta Crater, which formed on the site of the palaeo-channel of the Erkuta–Yakha River. The contours of the dried riverbed can be seen in a photograph of 2017, as well as in a satellite image of 2013. As a result of evolution, the palaeo-channel gradually turned into an oxbow lake, which continued to degrade and split up into several small drying lakes. Then a heaving mound began to form within one of these dried-up lakes. Contour of a mound is a bright spot (probably slightly elevated and drained soils) against the background of a dark thawed water-saturated soils, which can be distinguished in a satellite image of the beginning of summer 2013.

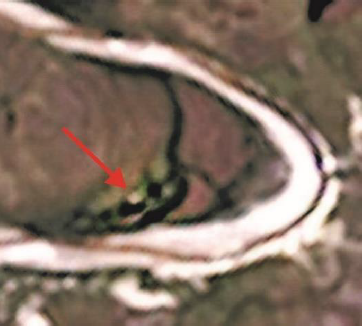

Satellite image of the Erkuta crater area at the beginning of summer 2013. Chuvilin et al. (2020).

The thermal e ect of such lakes often produces a zone of unfrozen rocks (a talik) underneath. The lake sediments within the taliks contain organic matter recycled by microorganisms with release of biogenic methane. Additionally, gases can penetrate into the lake sediments from deep subsurface through permeable deformed zones. The talik beneath the Erkuta crater was most likely closed, given that the permafrost thickness in the area is about 200 m deep and the lake was small. The lake was gradually shoaling and shrinking whereby the talik was freezing from below and from the sides, which caused stress buildup inside the remaining confined talik. talik [19,20]. The stress released explosively by eruption of the gas–water–soil mixture from the freezing talik and the ensuing formation of the crater in its place.

Based on our results and available information, Chuvilin et al. propose the following conceptual model for formation of the Erkuta Crater.


Formation of the Erkuta crater in several stages: I: a lake and a talik underneath; II: onset of talik freezing after the lake has dried out; III: confined freezing of the talik and buildup of cryogenic pressure. Arrows show the expulsion direction of gas (blue dots); IV stratification of gas, water, and soil in the freezing talk and frost heaving; V: collapse of the frozen cap above the talik by pressurised gas (cryovolcanism); VI: active eruption of the gas-water-soil mass and onset of crater formation; VII: end of eruption and crater formation; VIII: lake formation as crater becomes filled with water. Chuvilin et al. (2020).

Stage I: A lake is underlain by a talik, with periodic inputs of organic matter into the lake in summer seasons. The organic matter in the lake sediments is recycled microbially with generation of biogenic methane which is accumulated in winter and emitted into the air in spring. The gaseous component of the sediments in the talik increases additionally due to migration of deeper thermogenic gases along faults and fractures in the crust. Emission of deep-seated gases from Arctic lakes is known from several other areas.

Stage II: Onset of talik freezing takes place after the lake had dried out. The talik undergoes confined freezing and becomes saturated with biogenic and deep-seated thermogenic gas.

Stage III: Confined freezing of the talik and buildup of cryogenic pressure takes place. Freezing of gas-saturated pore moisture under gas pressure at this stage has been studied previously by thermodynamic modeling in laboratory experiments.

As the lake is drying, the sub-lake unfrozen sediments are freezing from the top and from the sides, which leads to cryogenic gas concentration and stress buildup in the freezing closed talik. Gas-bearing sediments in the latter are confined by the surrounding ice-rich sediments, which increases gas pore pressure in the talik. The pressure may lead to ductile deformation of the permafrost cap above the talik if it exceeds the overburden pressure. At this stage, gas, water and soil in the residual talik can start to stratify.

Stage IV: Stratification of gas, water and soil in the residual talik and heaving. This process occurs in fairly homogeneous alluvial deposits. represented by sandy and silty sediments. As a result of stratification, heavier and denser soil stays on the bottom, while the light volatile gas component rises to the top; liquid water is in the middle. The layers of predominant soil, water and gas components are separated by dash lines in the figure, which are drawn tentatively because each layer contains some amounts of other components. If the pressure buildup is slow, the frozen cap can deform ductily, producing long-lasting heaves on the surface, pingo-like structures. However, if pressure increases rapidly, no slow loss heaving occurs before the stress release.

Stage V: Pressure increase in the talik saturated with water and gas and explosive pressure release breaking through the frozen cap. This phenomenon is known as cryovolcanism; eruption of water, fluids and liquefied soil triggered by overpressure in a freezing confined or open water-bearing system. The collapse of the frozen cap may be accompanied by outpouring of water or mud. No explosion occurs if the amount of gas in the talik is small, but the gas–water–soil mass from the talik erupts explosively and becomes dispersed, together with the frozen cap debris, in the presence of a gas cap.

Stages VI and VII: Progress of cryovolcanism. At stage VI, the gas–water–soil mixture erupts vigorously, and a crater starts to form. The explosive gas emission breaks up the meters thick frozen cap and disperses its material around the cryovolcano vent. A part of the ejected material falls near the crater and produces a parapet-like ridge rising above the surface around the crater, while some other part obviously falls back into the crater and gradually sinks to the bottom. As the eruption continues, the ejected unfrozen soil falls over the debris of the frozen cap. The soil, water and gas components of the talik, which were previously stratified during the confined freezing, mix again when erupting. (Stage VI). The level of the gas–water–soil mixture in the crater gradually decreases and the crater walls emerge. At stage VII, the eruption stops and leaves a crater, with its diameter commensurate with that of the residual closed talik prior to the emission. The ice-rich debris of the cap and the ejected talik sediments are scattered around the crater and cover its bottom.

Note that stages V, VI and VII follow one after another in a few hours to days.

Stage VIII: Stable evolution of the crater and its gradual transformation into a di erent landform. As the ejected material becomes involved into seasonal freezing–thawing cycles, the crater becomes filled with water in a few months and transforms into a circular lake surrounded by ejected material.

The suggested model explains the crater formation as a result of gas generation and accumulation in a sub-lake talik and the evolution of the talik exposed to confined freezing as the lake is drying out. Gas accumulation in the talik is additionally maintained by ascend of deep fluids migrating upwards through permeable faulted and fractured bedrock.

The data on the structure and composition of soil samples from the crater wall, as well as the proposed conceptual model for formation of the Erkuta crater, characterize it as a feature of explosive gas emission. Apparently, the crater formed in the place of a freezing closed talik under a dried lake by explosion of pressurized gas in the confined unfrozen sediments. The formation of the crater was preceded by rapid heaving within one or two years, judging by remnants of a mound detected in the first helicopter view of the area. The crater had a shape of a vertical cylinder with smooth walls, possibly because the explosion broke the frozen cap above the talik and mobilized the unfrozen soil–water–gas mass from the talik. A similar process of cryovolcanism has been proposed for formation of the Yamal Crater. Chuvilin et al. also consider the talik zone freezing. However, the essential role in the gas accumulation process (unlike the model for the Yamal crater) is played not by the biogenic gas generated in the bottom sediments of the thermokarst lake, but by the deep gas entering through the permeable zones.

The presence of fractures partly filled with ice on the crater walls also indicates that the freezing talik underwent buildup and partial release of stress. Our results indicate that the gas accumulated in and emitted from the talik came from two sources: it was biogenic gas resulting from microbially mediated decay of organic matter in lake sediments and thermogenic gas that migrated from deeper hydrocarbon reservoirs through permeable deformed bedrock. The proposed formation model of the Erkuta crater, unlike that of cryovolcanism suggested for the Yamal Crater, includes the contributions of thermogenic gas that had migrated along faults and fractures from deeper hydrocarbon reservoirs in addition to biogenic gas that formed within the talik.

In general, proposed formation model for the Erkuta crater associated with the emission of gas, which is accumulated in shallow permafrost. Its main feature is the consideration of the combined influence of deep-seated (deep gas migration) and shallow (oxbow lake evolution and closed talik freezing) causes in the process of Erkuta gas-emission crater formation. This vision is fundamentally di erent from the models of other authors, where only one prerequisites type of crater formation is considered: either deep-seated causes or only shallow ones.

The study presents exceptional data on the Erkuta gas-emission crater which was discovered in the summer of 2017 in the floodplain of the Erkuta–Yakha River on the Yamal Peninsula, south of all other craters of this kind found in the North of West Siberia for the past decade.

The main value of the research was the timely organized field trip to the crater in December 2017, which allowed collecting field data and sampling soil, ice and water before the crater became fully filled with water. The lifetime of these features being very short (less than 2 years), the soil and ground ice collected in December 2017 are the only samples suitable for laboratory analyses.

The study provides field data on the crater evolution in 2017–2018 and laboratory results for samples of frozen soil and ground ice from the crater walls. The crater formation was preceded by rapid heaving (within 1–2 years) detectable in aerial photographs. The presence of fractures partly filled with ice on the crater walls records buildup and partial release of stress in the freezing talik.

The carbon isotope composition of the gas component in ground ice proves the biogenic origin of methane in the surrounding permafrost. The presence of ethane and propane indicates that deep-seated gases generated during sediment maturation processes may have been involved into the gas-emission event. The higher contents of carbon dioxide compared to methane in several samples confirms the assumption of cryogenic concentration, which usually occurs during freezing of taliks.

The results are used to model the formation of the Erkuta gas-emission crater in shallow permafrost caused by the evolution of a talik under a dry lake, assuming a deep gas flow into the unfrozen zone. The model describes the crater evolution in several stages from geological prerequisites to the formation of a new lake-like landform.
